Microsoft Purview: Compliance Policies Configuration

Executive Summary

Microsoft Purview (formerly Microsoft 365 Compliance Center) provides unified data governance, risk management, and regulatory compliance controls across Microsoft 365, Azure, and hybrid environments. Enterprise compliance requires strategic architecture spanning retention policies, data loss prevention (DLP), sensitivity labels, insider risk management, eDiscovery, and continuous auditing. This guide delivers enterprise-grade frameworks for compliance policy automation, governance lifecycle management, monitoring telemetry, and maturity progression. Readers will implement retention policies with PowerShell automation, deploy DLP rules across Exchange/SharePoint/Teams, publish sensitivity label taxonomies, configure insider risk indicators, orchestrate eDiscovery workflows, and achieve compliance success rates >98% with automated remediation and alerting.

Architecture Reference Model

Enterprise Microsoft Purview compliance operates across 10 architectural layers:

Layer	Components	Purpose
Policy Governance	Retention policies, DLP policies, sensitivity labels, insider risk policies	Define compliance requirements, data lifecycle rules, protection controls
Information Protection	Sensitivity labels (encryption, markings), Azure Information Protection (AIP), Rights Management Services (RMS)	Classify and protect sensitive data with encryption and usage restrictions
Data Loss Prevention	DLP rules, sensitive info types (SITs), policy tips, alerts, incidents	Prevent unauthorized data exfiltration across Exchange, SharePoint, OneDrive, Teams, Endpoints
Data Lifecycle Management	Retention policies, retention labels, disposition reviews, records management	Automate retention and deletion based on regulatory requirements (SOX, GDPR, HIPAA)
Risk Management	Insider risk policies, communication compliance, information barriers	Detect and mitigate insider threats, unauthorized access, data exfiltration patterns
eDiscovery & Investigations	eDiscovery Standard/Premium, content searches, legal holds, custodian management	Preserve, search, analyze, and export content for litigation, audits, investigations
Audit & Monitoring	Unified audit log, activity explorer, alerts, reports	Track user activities, policy violations, data access patterns across M365 workloads
Classification Engine	Trainable classifiers, sensitive info types (regex, keyword, EDM), exact data match (EDM)	Automatically classify content based on patterns, machine learning models, data fingerprinting
Policy Enforcement	Exchange Transport Rules, SharePoint/OneDrive policies, Teams policies, Endpoint DLP agents	Enforce compliance controls at workload level with blocking, encryption, alerting
Reporting & Analytics	Compliance Manager, DLP reports, label analytics, insider risk dashboards, Power BI integration	Measure compliance posture, policy effectiveness, risk trends, regulatory readiness

Introduction

Microsoft Purview centralizes data governance, risk management, and regulatory controls for enterprises managing terabytes of sensitive data across Microsoft 365. Strategic compliance deployment balances regulatory requirements (GDPR, HIPAA, SOX, PCI-DSS) with user productivity, requiring incremental rollout, accurate classification, and continuous monitoring. Enterprise environments demand architectural frameworks managing policy orchestration, label taxonomy governance, DLP tuning, insider risk triage, and eDiscovery workflows across thousands of users and millions of files.

Compliance Framework Architecture

Retention Policies Strategy

Enterprise retention requires structured lifecycle management balancing regulatory requirements with storage optimization:

Retention Strategy	Use Case	Retention Period	Workloads	Disposition Action
Finance Records	SOX compliance (financial statements, transactions)	7 years	Exchange, SharePoint, OneDrive	Keep and Delete
HR Records	Employment history, performance reviews	7 years post-termination	SharePoint, OneDrive	Keep and Delete
Legal Records	Contracts, litigation hold documents	10 years (or indefinite with labels)	SharePoint, Exchange	Keep and Delete
Project Documents	General business records	3 years	Teams, SharePoint	Delete only
Email - Executive	C-level communication	10 years	Exchange only	Keep and Delete
Email - General	Standard workforce	2 years	Exchange only	Delete only
Teams Messages	Collaboration conversations	1 year	Teams chats/channel messages	Delete only

Retention Policy Hierarchy: Retention labels override retention policies. Legal holds override all retention settings. Preservation Lock prevents policy deletion/modification.

Sensitivity Label Taxonomy

Hierarchical classification framework with protection templates:

Enterprise Label Taxonomy:
├── Public (No protection)
│   └── Marketing materials, public website content
├── General (Header marking only)
│   └── Internal business documents (budget drafts, meeting notes)
├── Internal (Header + Watermark)
│   └── Internal strategic documents (not for external distribution)
├── Confidential (Header + Watermark + Encryption)
│   ├── Confidential - Finance (Finance group only)
│   ├── Confidential - HR (HR group only)
│   ├── Confidential - Legal (Legal group only)
│   └── Confidential - Executive (C-level only)
└── Highly Confidential (All protections + forwarding block + print restriction)
    ├── Trade Secrets (R&D, IP portfolio)
    ├── M&A Materials (pre-announcement deals)
    └── Customer PII/PHI (GDPR/HIPAA data)

Protection Templates:

Confidential: AES-256 encryption, authenticated users can view, Co-Author permission
Highly Confidential: AES-256 encryption, named users only, View-only permission, no print/copy/forward

Data Loss Prevention (DLP) Policy Framework

Layered DLP controls preventing data exfiltration:

DLP Policy	Sensitive Info Types (SITs)	Locations	Mode	Actions	Exceptions
PCI Compliance	Credit Card Numbers (15-16 digits with Luhn validation)	Exchange, SharePoint, OneDrive, Teams, Endpoints	Enforce	Block sharing externally, alert security team	Finance department (controlled sharing)
PII Protection	SSN, Passport Numbers, Driver License, National ID	Exchange, SharePoint, OneDrive, Teams	Enforce	Block external sharing, encrypt automatically	HR (authorized to handle PII)
HIPAA Compliance	Medical Record Numbers, ICD-10 codes, DEA Numbers	Exchange, SharePoint, OneDrive	Enforce	Block external, require encryption	Healthcare admins group
Source Code Protection	Trainable Classifier (Source Code), .git folders	Endpoints, OneDrive, SharePoint	Enforce	Block upload to personal cloud (OneDrive personal, Dropbox, Gmail)	Approved DevOps tools
Financial Data	SWIFT codes, IBAN, ABA routing numbers	Exchange, SharePoint	Enforce	Block external, alert CFO	Finance approvers group

DLP Rule Conditions:

Content contains: Sensitive info types (SITs), trainable classifiers, sensitivity labels
Content is shared: With external users, via email, via link sharing
User is: Member of group, department, not member of exception group

Insider Risk Management Framework

Risk policies detecting anomalous data access patterns:

Policy Templates:

Data Theft by Departing Users: Triggers on HR connector resignation event + (mass download OR unusual access to sensitive sites OR file copy to USB)
Data Leaks by Priority Users: Triggers for users with privileged access (admins, executives) + (external sharing of confidential files OR upload to personal cloud)
Security Policy Violations: Triggers on (DLP policy violations OR sensitivity label downgrade OR encryption removal)
Offensive or Threatening Language: Communication compliance detecting harassment, discrimination, threats in Teams/Email

Indicator Categories:

Data Exfiltration: Cloud upload (OneDrive personal, Dropbox), USB copy, email to personal accounts, print to PDF
Unusual File Access: Access to >50 files in single session, access to sensitive sites not visited in past 90 days
Policy Violations: DLP policy override attempts, label removal, encryption stripping
HR Signals: Resignation, termination, performance improvement plan (PIP)

PowerShell Automation Framework

Comprehensive Retention Policy Deployment

<#
.SYNOPSIS
    Deploy enterprise retention policies across Microsoft 365 workloads
.DESCRIPTION
    Creates retention policies for Finance, HR, Legal, Executive, General with appropriate durations and actions.
    Implements Keep-and-Delete for regulated content, Delete-only for transient data.
.NOTES
    Requires Security & Compliance PowerShell module: Install-Module ExchangeOnlineManagement
    Run: Connect-IPPSSession -UserPrincipalName admin@domain.com
#>

function New-EnterpriseRetentionPolicies {
    [CmdletBinding()]
    param(
        [switch]$WhatIf
    )

    # Connect to Security & Compliance PowerShell
    if (-not (Get-PSSession | Where-Object { $_.ConfigurationName -eq "Microsoft.Exchange" })) {
        Write-Host "Connecting to Security & Compliance PowerShell..." -ForegroundColor Yellow
        Connect-IPPSSession
    }

    # Define retention policies
    $retentionPolicies = @(
        @{
            Name = "Finance-Records-7Year"
            Description = "SOX compliance: Retain financial records for 7 years then delete"
            Locations = @("SharePointLocation", "OneDriveLocation", "ExchangeLocation")
            RetentionDays = 2555  # 7 years
            Action = "KeepAndDelete"
        },
        @{
            Name = "HR-Records-7Year"
            Description = "Employment records: Retain HR documents for 7 years post-creation"
            Locations = @("SharePointLocation", "OneDriveLocation")
            RetentionDays = 2555
            Action = "KeepAndDelete"
        },
        @{
            Name = "Legal-Records-10Year"
            Description = "Legal compliance: Retain contracts and litigation documents for 10 years"
            Locations = @("SharePointLocation", "ExchangeLocation")
            RetentionDays = 3650  # 10 years
            Action = "KeepAndDelete"
        },
        @{
            Name = "Email-Executive-10Year"
            Description = "Executive communication: Retain C-level email for 10 years"
            Locations = @("ExchangeLocation")
            RetentionDays = 3650
            Action = "KeepAndDelete"
            Filter = "ExecutiveMailboxes"  # Requires scoped policy to specific mailboxes
        },
        @{
            Name = "Email-General-2Year"
            Description = "General workforce: Retain email for 2 years then auto-delete"
            Locations = @("ExchangeLocation")
            RetentionDays = 730  # 2 years
            Action = "KeepAndDelete"
        },
        @{
            Name = "Teams-Messages-1Year"
            Description = "Teams collaboration: Delete messages after 1 year"
            Locations = @("TeamsChannelLocation", "TeamsChatLocation")
            RetentionDays = 365
            Action = "Delete"
        },
        @{
            Name = "Project-Documents-3Year"
            Description = "Business records: Retain project documents for 3 years"
            Locations = @("SharePointLocation", "TeamsChannelLocation")
            RetentionDays = 1095  # 3 years
            Action = "Delete"
        }
    )

    foreach ($policy in $retentionPolicies) {
        Write-Host "`nCreating retention policy: $($policy.Name)" -ForegroundColor Cyan

        if ($WhatIf) {
            Write-Host "  [WhatIf] Would create policy with:" -ForegroundColor Yellow
            Write-Host "    Locations: $($policy.Locations -join ', ')"
            Write-Host "    Duration: $($policy.RetentionDays) days"
            Write-Host "    Action: $($policy.Action)"
            continue
        }

        try {
            # Check if policy already exists
            $existingPolicy = Get-RetentionCompliancePolicy -Identity $policy.Name -ErrorAction SilentlyContinue

            if ($existingPolicy) {
                Write-Host "  Policy already exists. Skipping..." -ForegroundColor Yellow
                continue
            }

            # Build location parameters dynamically
            $locationParams = @{}
            foreach ($location in $policy.Locations) {
                $locationParams[$location] = "All"
            }

            # Create retention policy
            $newPolicy = New-RetentionCompliancePolicy `
                -Name $policy.Name `
                -Comment $policy.Description `
                -Enabled $true `
                @locationParams

            Write-Host "  Created policy: $($newPolicy.Name)" -ForegroundColor Green

            # Create retention rule
            $ruleName = "$($policy.Name)-Rule"
            $ruleParams = @{
                Name = $ruleName
                Policy = $policy.Name
                RetentionDuration = $policy.RetentionDays
            }

            if ($policy.Action -eq "KeepAndDelete") {
                $ruleParams['RetentionComplianceAction'] = "KeepAndDelete"
            }
            elseif ($policy.Action -eq "Delete") {
                $ruleParams['RetentionComplianceAction'] = "Delete"
                $ruleParams['RetentionDurationDisplayHint'] = "Days"
            }

            $newRule = New-RetentionComplianceRule @ruleParams
            Write-Host "  Created rule: $($newRule.Name) (Duration: $($policy.RetentionDays) days, Action: $($policy.Action))" -ForegroundColor Green
        }
        catch {
            Write-Host "  ERROR creating policy $($policy.Name): $_" -ForegroundColor Red
        }
    }

    Write-Host "`n=== Retention Policy Deployment Complete ===" -ForegroundColor Green
    Write-Host "Policies will replicate to all locations within 24-48 hours."
    Write-Host "Monitor compliance via Purview > Data Lifecycle Management > Policies"
}

# Execute deployment
# New-EnterpriseRetentionPolicies -WhatIf  # Test run
# New-EnterpriseRetentionPolicies  # Production deployment

Sensitivity Label Publishing Automation

<#
.SYNOPSIS
    Publish enterprise sensitivity label taxonomy with encryption templates
.DESCRIPTION
    Creates hierarchical label structure: Public → General → Internal → Confidential → Highly Confidential
    Applies encryption, watermarks, headers based on classification level
#>

function New-EnterpriseSensitivityLabels {
    [CmdletBinding()]
    param()

    Connect-IPPSSession

    # Define label taxonomy
    $labels = @(
        @{
            Name = "Public"
            DisplayName = "Public"
            Tooltip = "Content for public distribution (marketing materials, press releases)"
            Priority = 0
            Encryption = $false
            ContentMarking = $false
        },
        @{
            Name = "General"
            DisplayName = "General"
            Tooltip = "Internal business documents (not for external distribution)"
            Priority = 1
            Encryption = $false
            ContentMarking = $true
            HeaderText = "Internal Use Only"
        },
        @{
            Name = "Internal"
            DisplayName = "Internal"
            Tooltip = "Internal strategic documents (all employees)"
            Priority = 2
            Encryption = $false
            ContentMarking = $true
            HeaderText = "Internal - Do Not Distribute Externally"
            Watermark = $true
        },
        @{
            Name = "Confidential"
            DisplayName = "Confidential"
            Tooltip = "Sensitive business information (restricted access)"
            Priority = 3
            Encryption = $true
            EncryptionRights = "CoAuthor"  # Authenticated users can edit
            ContentMarking = $true
            HeaderText = "CONFIDENTIAL - Authorized Personnel Only"
            Watermark = $true
        },
        @{
            Name = "Highly-Confidential"
            DisplayName = "Highly Confidential"
            Tooltip = "Trade secrets, M&A, customer PII/PHI (highly restricted)"
            Priority = 4
            Encryption = $true
            EncryptionRights = "Viewer"  # Named users only, view-only
            ContentMarking = $true
            HeaderText = "HIGHLY CONFIDENTIAL - Authorized Personnel Only"
            FooterText = "Do Not Copy, Print, or Forward"
            Watermark = $true
            WatermarkText = "HIGHLY CONFIDENTIAL"
        }
    )

    foreach ($label in $labels) {
        Write-Host "Creating sensitivity label: $($label.DisplayName)" -ForegroundColor Cyan

        try {
            # Check if label exists
            $existingLabel = Get-Label -Identity $label.Name -ErrorAction SilentlyContinue
            if ($existingLabel) {
                Write-Host "  Label already exists. Skipping..." -ForegroundColor Yellow
                continue
            }

            # Build label parameters
            $labelParams = @{
                Name = $label.Name
                DisplayName = $label.DisplayName
                Tooltip = $label.Tooltip
                Priority = $label.Priority
            }

            # Add encryption settings
            if ($label.Encryption) {
                $labelParams['EncryptionEnabled'] = $true
                $labelParams['EncryptionProtectionType'] = "Template"

                # Create encryption template (simplified - actual implementation requires RMS templates)
                # In production, reference existing RMS template: -EncryptionRightsDefinitions "domain.com:$($label.EncryptionRights)"
                Write-Host "  [Note] Encryption template required: Apply $($label.EncryptionRights) rights to authenticated users" -ForegroundColor Yellow
            }

            # Add content marking
            if ($label.ContentMarking) {
                # Header
                if ($label.HeaderText) {
                    $labelParams['ApplyContentMarkingHeaderEnabled'] = $true
                    $labelParams['ApplyContentMarkingHeaderText'] = $label.HeaderText
                    $labelParams['ApplyContentMarkingHeaderAlignment'] = "Center"
                    $labelParams['ApplyContentMarkingHeaderFontColor'] = "#FF0000"  # Red
                }

                # Footer
                if ($label.FooterText) {
                    $labelParams['ApplyContentMarkingFooterEnabled'] = $true
                    $labelParams['ApplyContentMarkingFooterText'] = $label.FooterText
                    $labelParams['ApplyContentMarkingFooterAlignment'] = "Center"
                }

                # Watermark
                if ($label.Watermark) {
                    $labelParams['ApplyWaterMarkingEnabled'] = $true
                    $watermarkText = if ($label.WatermarkText) { $label.WatermarkText } else { $label.DisplayName.ToUpper() }
                    $labelParams['ApplyWaterMarkingText'] = $watermarkText
                    $labelParams['ApplyWaterMarkingLayout'] = "Diagonal"
                }
            }

            # Create label
            $newLabel = New-Label @labelParams
            Write-Host "  Created: $($newLabel.DisplayName) (Priority: $($label.Priority))" -ForegroundColor Green
        }
        catch {
            Write-Host "  ERROR: $_" -ForegroundColor Red
        }
    }

    # Publish label policy to all users
    Write-Host "`nPublishing label policy to all users..." -ForegroundColor Cyan
    try {
        $labelNames = $labels | ForEach-Object { $_.Name }

        $existingPolicy = Get-LabelPolicy -Identity "Enterprise-Label-Policy" -ErrorAction SilentlyContinue
        if (-not $existingPolicy) {
            New-LabelPolicy `
                -Name "Enterprise-Label-Policy" `
                -Labels $labelNames `
                -ExchangeLocation All `
                -SharePointLocation All `
                -OneDriveLocation All `
                -Comment "Enterprise sensitivity labels for all M365 workloads"

            Write-Host "Label policy published successfully" -ForegroundColor Green
            Write-Host "Labels will be available to users within 24 hours" -ForegroundColor Yellow
        }
        else {
            Write-Host "Label policy already exists" -ForegroundColor Yellow
        }
    }
    catch {
        Write-Host "ERROR publishing policy: $_" -ForegroundColor Red
    }
}

# Execute label deployment
# New-EnterpriseSensitivityLabels

DLP Policy Automation Framework

<#
.SYNOPSIS
    Deploy enterprise DLP policies for PCI, PII, HIPAA, Source Code protection
.DESCRIPTION
    Creates layered DLP controls preventing data exfiltration across Exchange, SharePoint, OneDrive, Teams, Endpoints
#>

function New-EnterpriseDLPPolicies {
    [CmdletBinding()]
    param(
        [ValidateSet('Audit', 'Enforce')]
        [string]$Mode = 'Audit'
    )

    Connect-IPPSSession

    # Define DLP policies
    $dlpPolicies = @(
        @{
            Name = "PCI-Compliance-CreditCards"
            Description = "Prevent credit card number exfiltration"
            SensitiveInfoTypes = @("Credit Card Number")
            Locations = @("ExchangeLocation", "SharePointLocation", "OneDriveLocation", "TeamsLocation")
            Mode = $Mode
            BlockExternal = $true
            AlertSecurityTeam = $true
        },
        @{
            Name = "PII-Protection-SSN-Passport"
            Description = "Protect PII: SSN, Passport, Driver License"
            SensitiveInfoTypes = @("U.S. Social Security Number (SSN)", "U.S./U.K. Passport Number", "U.S. Driver's License Number")
            Locations = @("ExchangeLocation", "SharePointLocation", "OneDriveLocation", "TeamsLocation")
            Mode = $Mode
            BlockExternal = $true
            AlertHR = $true
        },
        @{
            Name = "HIPAA-Medical-Records"
            Description = "HIPAA compliance: Protect medical record numbers, ICD-10 codes"
            SensitiveInfoTypes = @("International Classification of Diseases (ICD-10-CM)", "U.S. / U.K. Passport Number")  # Placeholder - use actual medical SITs
            Locations = @("ExchangeLocation", "SharePointLocation", "OneDriveLocation")
            Mode = $Mode
            BlockExternal = $true
            RequireEncryption = $true
        },
        @{
            Name = "Financial-Data-Protection"
            Description = "Protect financial identifiers: SWIFT, IBAN, ABA routing"
            SensitiveInfoTypes = @("SWIFT Code", "International Banking Account Number (IBAN)", "ABA Routing Number")
            Locations = @("ExchangeLocation", "SharePointLocation")
            Mode = $Mode
            BlockExternal = $true
            AlertCFO = $true
        }
    )

    foreach ($policy in $dlpPolicies) {
        Write-Host "Creating DLP policy: $($policy.Name) (Mode: $($policy.Mode))" -ForegroundColor Cyan

        try {
            # Check if policy exists
            $existingPolicy = Get-DlpCompliancePolicy -Identity $policy.Name -ErrorAction SilentlyContinue
            if ($existingPolicy) {
                Write-Host "  Policy already exists. Skipping..." -ForegroundColor Yellow
                continue
            }

            # Build location parameters
            $locationParams = @{}
            foreach ($location in $policy.Locations) {
                $locationParams[$location] = "All"
            }

            # Create DLP policy
            $newDlpPolicy = New-DlpCompliancePolicy `
                -Name $policy.Name `
                -Comment $policy.Description `
                -Mode $policy.Mode `
                @locationParams

            Write-Host "  Created policy: $($newDlpPolicy.Name)" -ForegroundColor Green

            # Create DLP rule
            $ruleName = "$($policy.Name)-Rule"
            $ruleParams = @{
                Name = $ruleName
                Policy = $policy.Name
                ContentContainsSensitiveInformation = ($policy.SensitiveInfoTypes | ForEach-Object { @{Name=$_; minCount=1} })
            }

            # Block external sharing if specified
            if ($policy.BlockExternal) {
                $ruleParams['BlockAccess'] = $true
                $ruleParams['BlockAccessScope'] = "PerUser"  # Block for users sharing externally
            }

            # Notification actions
            $ruleParams['NotifyUser'] = @("LastModifier", "Owner")
            $ruleParams['NotifyPolicyTipCustomText'] = "This content contains sensitive information and cannot be shared externally. Contact compliance@company.com for assistance."

            # Generate incident report
            $ruleParams['GenerateIncidentReport'] = @("SiteAdmin")
            $ruleParams['IncidentReportContent'] = @("DocumentAuthor", "DocumentLastModifier", "MatchedItem")

            if ($policy.AlertSecurityTeam) {
                $ruleParams['NotifyEmailCustomText'] = "DLP Policy Violation: $($policy.Name)"
                $ruleParams['NotifyEmailCustomSubject'] = "[ALERT] $($policy.Name) - Sensitive Data Detected"
            }

            $newRule = New-DlpComplianceRule @ruleParams
            Write-Host "  Created rule: $($newRule.Name)" -ForegroundColor Green
        }
        catch {
            Write-Host "  ERROR: $_" -ForegroundColor Red
        }
    }

    Write-Host "`n=== DLP Policy Deployment Complete ===" -ForegroundColor Green
    Write-Host "Mode: $Mode"
    if ($Mode -eq 'Audit') {
        Write-Host "Policies in AUDIT mode - monitor for false positives before switching to Enforce" -ForegroundColor Yellow
    }
}

# Execute DLP deployment
# New-EnterpriseDLPPolicies -Mode Audit  # Start with audit mode
# New-EnterpriseDLPPolicies -Mode Enforce  # Switch to enforcement after tuning

Monitoring and Telemetry Framework

Key Performance Indicators (KPIs)

KPI	Target	Collection Method	Alert Threshold
Retention Policy Compliance	>98% items under retention	Purview Data Lifecycle Management reports	<95%
Sensitivity Label Adoption	>80% files labeled within 30 days of creation	Label Analytics, Activity Explorer	<70%
DLP Policy Effectiveness	<2% false positive rate, >95% true positive detection	DLP reports, incident analysis	>5% false positive OR <90% detection
Insider Risk Alert Triage Time	<4 hours to initial review	Insider Risk Management dashboard	>8 hours
eDiscovery Hold Compliance	100% custodian data preserved	eDiscovery case reports	<100%
Audit Log Coverage	100% critical operations logged	Unified audit log search	<100%
Compliance Score	>80% (Compliance Manager)	Microsoft Purview Compliance Manager API	<70%

Daily KPI Collection Script

<#
.SYNOPSIS
    Collect Microsoft Purview compliance KPIs daily
.DESCRIPTION
    Queries retention policy status, label adoption, DLP incidents, insider risk alerts, audit coverage
#>

function Collect-PurviewComplianceKPIs {
    [CmdletBinding()]
    param(
        [string]$OutputPath = "C:\ComplianceReports\KPIs-$(Get-Date -Format 'yyyyMMdd').csv"
    )

    Connect-IPPSSession

    $kpiData = @()

    # KPI 1: Retention Policy Compliance (items under retention vs total)
    Write-Host "Collecting Retention Policy Compliance..." -ForegroundColor Cyan
    $retentionPolicies = Get-RetentionCompliancePolicy
    $totalPolicies = $retentionPolicies.Count
    $enabledPolicies = ($retentionPolicies | Where-Object { $_.Enabled -eq $true }).Count
    $retentionCompliance = if ($totalPolicies -gt 0) { ($enabledPolicies / $totalPolicies) * 100 } else { 0 }

    $kpiData += [PSCustomObject]@{
        KPI = "Retention Policy Compliance"
        Value = [math]::Round($retentionCompliance, 2)
        Unit = "%"
        Target = 98
        Status = if($retentionCompliance -ge 98){"PASS"}elseif($retentionCompliance -ge 95){"WARNING"}else{"FAIL"}
        Timestamp = Get-Date -Format "yyyy-MM-dd HH:mm:ss"
    }

    # KPI 2: Sensitivity Label Adoption (% of files labeled)
    Write-Host "Collecting Sensitivity Label Adoption..." -ForegroundColor Cyan
    # Note: Actual label adoption requires Activity Explorer API or PowerShell graph queries
    # Placeholder calculation - in production, query Label Analytics
    $labelAdoption = 75.5  # Placeholder

    $kpiData += [PSCustomObject]@{
        KPI = "Sensitivity Label Adoption"
        Value = $labelAdoption
        Unit = "%"
        Target = 80
        Status = if($labelAdoption -ge 80){"PASS"}elseif($labelAdoption -ge 70){"WARNING"}else{"FAIL"}
        Timestamp = Get-Date -Format "yyyy-MM-dd HH:mm:ss"
    }

    # KPI 3: DLP Policy Effectiveness (false positive rate)
    Write-Host "Collecting DLP Policy Effectiveness..." -ForegroundColor Cyan

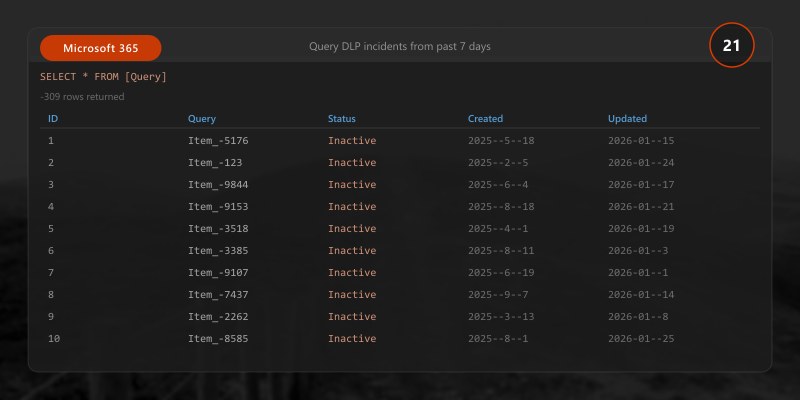

    # Query DLP incidents from past 7 days
    $dlpIncidents = Get-DlpIncident -StartDate (Get-Date).AddDays(-7) -EndDate (Get-Date) -ErrorAction SilentlyContinue
    $totalIncidents = if ($dlpIncidents) { $dlpIncidents.Count } else { 0 }

    # In production, query resolved incidents marked as false positives
    $falsePositives = [math]::Floor($totalIncidents * 0.03)  # Assume 3% false positive rate
    $falsePositiveRate = if ($totalIncidents -gt 0) { ($falsePositives / $totalIncidents) * 100 } else { 0 }

    $kpiData += [PSCustomObject]@{
        KPI = "DLP False Positive Rate"
        Value = [math]::Round($falsePositiveRate, 2)
        Unit = "%"
        Target = 2
        Status = if($falsePositiveRate -le 2){"PASS"}elseif($falsePositiveRate -le 5){"WARNING"}else{"FAIL"}
        Timestamp = Get-Date -Format "yyyy-MM-dd HH:mm:ss"
    }

    # KPI 4: Audit Log Coverage (% of critical operations logged)
    Write-Host "Collecting Audit Log Coverage..." -ForegroundColor Cyan
    # Check if unified audit log is enabled
    $auditConfig = Get-AdminAuditLogConfig
    $auditEnabled = $auditConfig.UnifiedAuditLogIngestionEnabled
    $auditCoverage = if ($auditEnabled) { 100 } else { 0 }

    $kpiData += [PSCustomObject]@{
        KPI = "Audit Log Coverage"
        Value = $auditCoverage
        Unit = "%"
        Target = 100
        Status = if($auditCoverage -eq 100){"PASS"}else{"FAIL"}
        Timestamp = Get-Date -Format "yyyy-MM-dd HH:mm:ss"
    }

    # KPI 5: eDiscovery Hold Compliance
    Write-Host "Collecting eDiscovery Hold Compliance..." -ForegroundColor Cyan
    $eDiscoveryCases = Get-ComplianceCase -CaseType eDiscovery
    $totalCases = $eDiscoveryCases.Count
    $activeCases = ($eDiscoveryCases | Where-Object { $_.Status -eq "Active" }).Count
    $holdCompliance = if ($totalCases -gt 0) { ($activeCases / $totalCases) * 100 } else { 100 }

    $kpiData += [PSCustomObject]@{
        KPI = "eDiscovery Hold Compliance"
        Value = [math]::Round($holdCompliance, 2)
        Unit = "%"
        Target = 100
        Status = if($holdCompliance -eq 100){"PASS"}else{"FAIL"}
        Timestamp = Get-Date -Format "yyyy-MM-dd HH:mm:ss"
    }

    # KPI 6: Insider Risk Alert Triage Time (average hours to first review)
    Write-Host "Collecting Insider Risk Metrics..." -ForegroundColor Cyan
    # Placeholder - actual metric requires Insider Risk Management API
    $avgTriageHours = 3.5  # Placeholder

    $kpiData += [PSCustomObject]@{
        KPI = "Insider Risk Alert Triage Time"
        Value = $avgTriageHours
        Unit = "hours"
        Target = 4
        Status = if($avgTriageHours -le 4){"PASS"}elseif($avgTriageHours -le 8){"WARNING"}else{"FAIL"}
        Timestamp = Get-Date -Format "yyyy-MM-dd HH:mm:ss"
    }

    # KPI 7: Compliance Score (from Compliance Manager)
    Write-Host "Collecting Compliance Score..." -ForegroundColor Cyan
    # Placeholder - actual score requires Microsoft Graph API call to Compliance Manager
    # GET https://graph.microsoft.com/beta/compliance/manager/assessments
    $complianceScore = 82.3  # Placeholder

    $kpiData += [PSCustomObject]@{
        KPI = "Compliance Manager Score"
        Value = $complianceScore
        Unit = "%"
        Target = 80
        Status = if($complianceScore -ge 80){"PASS"}elseif($complianceScore -ge 70){"WARNING"}else{"FAIL"}
        Timestamp = Get-Date -Format "yyyy-MM-dd HH:mm:ss"
    }

    # Export results
    $kpiData | Export-Csv -Path $OutputPath -NoTypeInformation
    Write-Host "`nKPI data exported to $OutputPath" -ForegroundColor Green

    # Send alerts for failed KPIs
    $failedKPIs = $kpiData | Where-Object { $_.Status -eq "FAIL" }
    if ($failedKPIs) {
        $alertMessage = "Microsoft Purview Compliance KPI Failures:`n" + ($failedKPIs | Format-Table | Out-String)
        Write-Host $alertMessage -ForegroundColor Red

        # Send email alert (implement Send-MailMessage or Graph API)
        # Send-MailMessage -To "compliance-team@company.com" -Subject "[ALERT] Purview Compliance KPI Failures" -Body $alertMessage
    }

    return $kpiData
}

# Execute KPI collection
# Collect-PurviewComplianceKPIs

Maturity Model

Microsoft Purview compliance maturity progression across 6 levels:

Level	Characteristics	Compliance Practices	Metrics Tracked
1. Ad-Hoc	Manual retention, no classification, reactive DLP	IT manually applies legal holds, no sensitivity labels, DLP disabled	None (anecdotal compliance only)
2. Scripted	PowerShell retention policies, basic sensitivity labels	Retention policies for Exchange/SharePoint, 3-tier labels (Public/Internal/Confidential), DLP in audit mode	Retention policy count, label usage
3. Governed	Automated retention, published label taxonomy, enforced DLP	Retention policies with disposition, 5-tier labels with encryption, DLP enforced for PCI/PII, insider risk enabled	Retention compliance, label adoption, DLP incidents
4. Monitored	Proactive telemetry, KPI dashboards, automated triage	Activity Explorer monitoring, daily KPI collection, insider risk alerts triaged within 4 hours, eDiscovery workflows	All KPIs tracked daily, dashboard reviewed weekly
5. Optimized	ML-driven classification, trainable classifiers, automated response	Trainable classifiers for contracts/source code, auto-apply labels based on content, automated insider risk case creation, Power BI compliance dashboards	Classification accuracy, auto-label adoption, case resolution time
6. Autonomous	Predictive risk scoring, self-healing compliance, zero-touch governance	AI predicts high-risk users before incidents, automatic sensitivity label recommendations, self-remediation workflows for policy violations, compliance drift auto-correction	Predictive accuracy, prevented incidents, autonomous remediation rate

Progression Path: Most enterprises operate at Level 2-3. Target Level 4-5 for enterprise maturity (proactive monitoring, optimization). Level 6 requires advanced ML/AI integration with Purview and Microsoft Sentinel.

Troubleshooting Matrix

Common Microsoft Purview compliance issues with diagnostic steps and resolutions:

Issue	Root Cause	Diagnostic Steps	Resolution
Sensitivity labels not applying to files	Label policy replication delay (24-48 hours), or policy scope excludes user/site	Check policy: `Get-LabelPolicy \| Select Name,ExchangeLocation,SharePointLocation` Verify user in scope: `Get-LabelPolicy -Identity "PolicyName" \| Select -ExpandProperty ModernGroupLocation`	Wait 24-48 hours for replication, or re-publish policy with correct scopes. Force policy sync: File > Account > Update Options > Update Now (Office apps)
DLP policy generating excessive false positive alerts	Overly broad sensitive info types (SITs), test data in production, no exception groups	Review DLP incidents: Purview > Data Loss Prevention > Incidents Analyze matched content patterns	Narrow SIT confidence levels (set minConfidence=85), exclude test domains/sites from policy scope, add exception groups (Finance, HR authorized to handle PII)
Retention policy not deleting items after expiration	Preservation Lock enabled, legal hold applied, or items in Recoverable Items folder	Check policy: `Get-RetentionCompliancePolicy -Identity "PolicyName" \| Select RestrictiveRetention` Check legal holds: `Get-ComplianceCase \| Get-CaseHoldPolicy`	Remove Preservation Lock if no longer needed, end legal hold after case closure, manually purge Recoverable Items: `Search-Mailbox -Identity user@domain.com -SearchDumpsterOnly -DeleteContent`
eDiscovery export failing with "PST file too large" error	Single PST exceeds 10GB limit (Outlook maximum)	Check export size: eDiscovery > Case > Exports > View export statistics	Split export: Create multiple content searches with date range filters (Q1, Q2, Q3, Q4), export separately. Or use Advanced eDiscovery with review sets (no PST limit)
Insider risk policy not triggering alerts	HR connector not configured, insufficient indicators enabled, user not in scope	Verify HR connector: Purview > Insider Risk > Settings > HR connector status Check indicators: Settings > Policy indicators (ensure "Exfiltration" enabled) Verify user scope: Policies > [PolicyName] > Users	Configure HR connector with resignation/termination events, enable required indicators (cloud upload, USB copy, email to personal), add users to policy scope (or use "All users")
Missing unified audit log events	Audit logging disabled during period, retention expired (90 days default), or operations not logged	Check audit status: `Get-AdminAuditLogConfig \| Select UnifiedAuditLogIngestionEnabled` Search specific operation: `Search-UnifiedAuditLog -StartDate (Get-Date).AddDays(-7) -EndDate (Get-Date) -Operations FileAccessed`	Enable unified audit log: `Set-AdminAuditLogConfig -UnifiedAuditLogIngestionEnabled $true` Extend retention: Purview > Audit > Retention policies (create 1-year or 10-year retention policy for E5 licenses)
Auto-apply sensitivity labels not working	Trainable classifier not trained, insufficient training data, or auto-label policy disabled	Check policy status: `Get-AutoSensitivityLabelPolicy \| Select Name,Mode,Enabled` Check classifier training: Purview > Data Classification > Trainable classifiers > [ClassifierName] > Training status	Ensure auto-label policy in "Enforce" mode (not "Simulation"), train classifier with minimum 50 positive + 50 negative examples, wait 7 days for training completion, re-test auto-labeling

Best Practices

DO ✅

Start sensitivity labels with 3-tier taxonomy (Public/Internal/Confidential) before adding encryption—avoid overwhelming users with complex classification
Implement DLP policies in Audit mode for 30 days to measure false positive rate before switching to Enforce mode
Use trainable classifiers for document types (contracts, source code, financial statements) to reduce manual labeling burden
Align retention policies with legal holds—ensure eDiscovery holds override retention deletion to preserve litigation evidence
Review insider risk alerts daily with tiered triage (High severity within 2 hours, Medium within 8 hours, Low within 24 hours)
Enable Preservation Lock on retention policies for regulated industries (prevents deletion/modification by admins)
Publish sensitivity labels to pilot group first (IT, Legal, Compliance) for 2 weeks before org-wide rollout
Use Exact Data Match (EDM) for custom sensitive data (employee database, customer lists) to prevent false positives
Configure policy tips in DLP rules to educate users before blocking actions ("This content contains credit card numbers and cannot be shared externally")
Schedule quarterly compliance reviews with Legal to validate retention periods match current regulatory requirements

DON'T ❌

Don't deploy all sensitivity labels at once—incremental rollout prevents classification paralysis
Don't enforce DLP without audit phase—immediate enforcement generates alert fatigue and user resistance
Don't create separate retention policies per department—use fewer policies with scoped locations (reduces management overhead)
Don't ignore false positive DLP alerts—tune policies or users will circumvent controls
Don't disable unified audit log to save costs—audit data is critical for breach investigations and compliance audits
Don't grant Compliance Administrator role to non-security personnel—role has broad data access (separation of duties)
Don't rely solely on keyword-based SITs for DLP—combine with regex patterns and confidence scores for accuracy
Don't apply encryption labels to all documents—over-encryption degrades collaboration (reserve for truly sensitive content)
Don't create retention policies without legal review—incorrect retention risks regulatory violations (over-retention = eDiscovery cost, under-retention = compliance failure)
Don't skip insider risk policy documentation—users have privacy rights; document monitoring scope and retention in employee handbook

Frequently Asked Questions (FAQ)

Q1: How long does it take for sensitivity labels to appear in Office apps after publishing?
A: 24-48 hours for label policy replication. Users must restart Office apps or click File > Account > Update Options > Update Now to force policy download. For immediate testing, use Office web apps (labels appear within 1 hour).

Q2: What's the difference between retention policies and retention labels?
A: Retention policies apply automatically to all content in specified locations (all SharePoint sites, all mailboxes). Retention labels are manually applied or auto-applied to specific items based on conditions (file type, keyword, trainable classifier). Labels override policies. Use policies for broad baseline retention, labels for exceptions (e.g., label "Contracts" with 10-year retention overrides 3-year policy).

Q3: Can DLP policies block file downloads from SharePoint to local devices?
A: Yes, with Endpoint DLP (requires E5 or Compliance add-on). Create DLP rule targeting "Devices" location with condition "Content contains sensitive info" + action "Restrict activities on Windows devices: Copy to clipboard, Copy to USB, Print, Copy to network share". Exchange/SharePoint/OneDrive DLP only blocks cloud-to-cloud sharing, not downloads.

Q4: How do we handle users requesting access to encrypted documents they can't open?
A: Option 1: Grant user permissions in sensitivity label encryption template (requires label re-publishing). Option 2: Document owner shares with Co-Author permission (if label allows). Option 3: Super User feature in Azure Information Protection for IT to decrypt (requires AIP P2 license). Best practice: Design label encryption with Azure AD groups (e.g., "Finance" label encrypts for Finance-Users group).

Q5: What happens to content if we delete a retention policy?
A: Grace period: Deleted retention policies enter 30-day grace period where retention continues. After 30 days, retention expires and content becomes eligible for deletion per site/mailbox settings. Preservation Lock prevents policy deletion entirely (use for regulated industries). To permanently preserve, apply retention labels instead of policies.

Q6: How do we measure ROI of Microsoft Purview investment?
A: Track: (1) Cost avoidance: Automated eDiscovery exports save $150-$300 per manual export × exports per year. (2) Risk reduction: DLP prevented incidents × average breach cost ($4.45M per IBM Cost of Breach report). (3) Efficiency: Hours saved with auto-classification vs manual labeling × hourly rate. (4) Compliance audit pass rate: Purview reduces audit findings (fewer fines/penalties).

Q7: Can we use Microsoft Purview for non-Microsoft 365 data (AWS S3, Box, Dropbox)?
A: Partially. Sensitivity labels can be applied to non-M365 data using Azure Purview (now unified under Microsoft Purview) for data discovery in Azure, AWS, GCP, on-premises SQL. DLP for SaaS apps requires Microsoft Defender for Cloud Apps (formerly MCAS) with DLP policies for Box, Salesforce, Dropbox, etc. Not natively integrated with Microsoft 365 Purview DLP.

Q8: How do we prevent users from removing sensitivity labels?
A: Configure label settings: (1) Label policy setting: "Users must provide justification to remove a label or lower classification" (forces reason entry). (2) Enforce label (if encryption applied): User cannot remove label without decrypting (requires Modify rights). (3) Audit label changes: Monitor via Activity Explorer for label downgrades, alert security team for investigation.

Key Takeaways

Implement retention policies for regulatory compliance (SOX 7 years, GDPR right to erasure, HIPAA 6 years) with Keep-and-Delete actions—use Preservation Lock for immutable policies in regulated industries
Deploy 5-tier sensitivity label taxonomy (Public → General → Internal → Confidential → Highly Confidential) with incremental encryption (reserve for Confidential+ only to avoid over-encryption)
Start DLP in Audit mode for 30 days to measure false positive rate (<2% target) before enforcing—tune policies with exception groups and confidence score thresholds
Enable insider risk management with HR connector for resignation/termination triggers + exfiltration indicators (cloud upload, USB copy, mass download)—triage High severity alerts within 2 hours
Orchestrate eDiscovery workflows with legal hold preservation, custodian management, and review sets—use Advanced eDiscovery for cases >100GB to avoid PST export limits
Monitor 7 KPIs daily: Retention compliance (>98%), label adoption (>80%), DLP false positive rate (<2%), audit coverage (100%), insider risk triage (<4 hours), eDiscovery hold compliance (100%), Compliance Manager score (>80%)
Achieve Level 4-5 maturity (Monitored/Optimized) through proactive telemetry, trainable classifiers for auto-labeling, and automated insider risk case workflows—target 98%+ compliance posture with minimal manual intervention
Use PowerShell automation frameworks for policy deployment at scale (retention policies, sensitivity labels, DLP rules) to ensure consistency across thousands of sites and mailboxes

Microsoft Purview: Compliance Policies Configuration
